RiMO Australasia

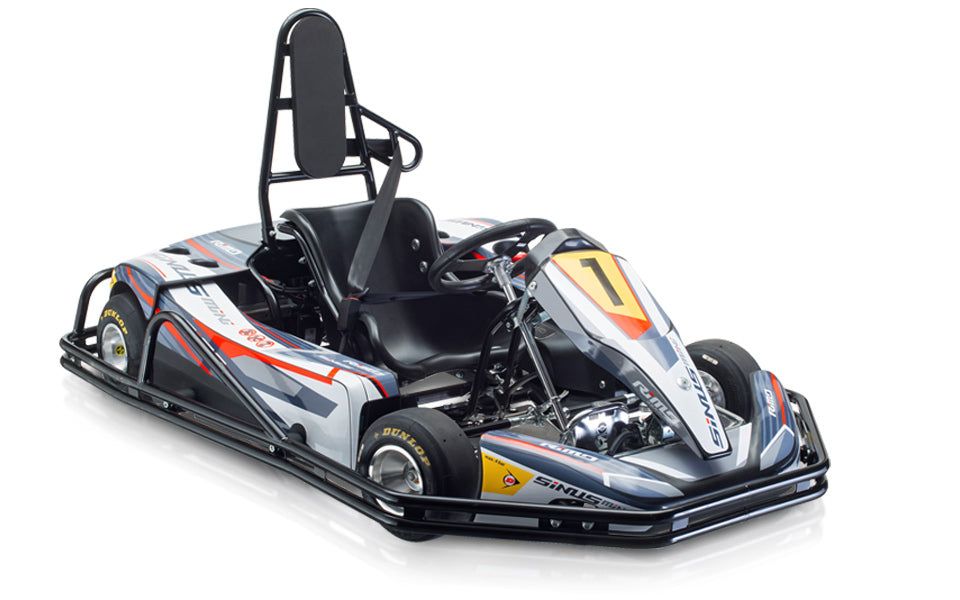

SiNUS MiNi

€7.992,00 EUR
€7.992,00 EUR €7.992,00 EUR
Sale Sold out
Shipping calculated at checkout.

View full details

2 x 2.8 kW | 40 AhSafe, quiet and as quick as lightning: The SiNUS MiNi is RiMO’s entry-level category for electric mobility.  The fun of driving is naturally also included in the standard equipment of this class. The standard use of lithium batteries with a capacity of 40Ah and the mature brand of RiMO GERMANY double motor drive are just two of the unique technological features of SiNUS for children. Clean, quiet, remotely controlled and monitored via WLAN, brings the SiNUS MiNi everything a kart of the 21st century needs.

Further Information

Advantages

• Adjustable seat
• Rollbar
• Shutdown transponder
• Bodywork design on customers request
• Safety belt (4-Point or 3-Point)
• Wireless Fleet Management

Base Model Inclusions

  • 31.8 mm frame, special tubing
  • 2 x 2.8 kW engines (nominal)
  • Maximum output of up to 23 kW (≙31PS)
  • 40 Ah rechargeable lithium batteries
  • RiMO hydraulic dual-circuit braking system
  • Full surround protection, special tubing
  • RiMO plastic seat (L)
  • Fixed seat stay
  • Fixed steering column stays
  • Upper clamp bearings as steering bearings
  • Caliba steering wheel
  • Replaceable steering column bearing support – bottom
  • Black bodywork, UV-resistant
  • RiMO factory design (changes annually)
  • DUNLOP tyres
  • Closed pedals
  • Grease nipple at pedal
  • Folding pedal extension

Technical Data

  • L/W/H:1760 / 1280/ 520-860**WITH ROLL BAR[OPTION]
  • Weight:​170 kg[BASIS]
  • Engines: 2 x 2.8 kW engines (5.6 kW)MAXIMUM OUTPUT OF UP TO 23 kW (≙31 hp)
  • Driving time: 25 Min.
  • Motorisation2 x 2.8 kW enginesMAXIMUM OUTPUT OF UP TO 23 kW (≙31 hp)
  • Revolutions per minute max. 7000 rpm
  • Reduction2 x planetary gears
  • Torque: 95 Nm per wheel
  • Output curve: freely programmable
  • Battery technology: 16 x 3.2 V LiFeMnPO4, 40 Ah
  • Driving time: 25 minutes
  • On-board voltage: 48 V
  • BMSCharging time: 48 minutes[STANDARD]
  • Chargers: 40 A, 230 V charger[BASIS]100 A, 380 V charger[OPTION]
  • Tyres: DUNLOP SL1[STANDARD]OTHER TYRE TYPES UPON REQUEST
  • Braking system: Hydraulic braking system for DOT5*

Highlights

  • The hydraulic braking system included in the standard equipment of the SiNUS MiNi offers superior safety.  It shares the brake calipers with the SiNUS iON.

  • The SiNUS MiNi can optionally be equipped with a roll bar.  A 3-point or 4-point belt is also available.

  • Customise the design of your SiNUS MiNi. RiMO’s in-house design department accepts any challenge.
Button label

Safety Features

  • The one-piece double-tube surround protection offers protection against collisions from all directions through its twelvefold floating support.

  • The flat pedals offer safe grip in all driving situations, while the integrated folding pedal extension provides higher variability.
Button label

Options available for the SiNUS MiNi

  • Roll Bar

  • Safety belt(4-point or 3-point)

  • Upholstered Tillet seat (M / XL)

  • Seat Adjustment

  • Support for pedal extension

  • Remote shutdown transponder

  • Guard for steeringcolumn stay

  • Wireless fleet management

  • Boost button

  • Magnetic number plate

  • Customised bodywork design
